RS232 Output Angular Velocity Sensor Industrial Single Axis Gyro 98*98* 35mm JT98D

Brand Name : JTZG

Place of Origin : china

MOQ : negotiable

Price : negotiable

Payment Terms : Negotiable

Supply Ability : Strong production capacity

Delivery Time : According to customer's requirement

Product Name : Angular Velocity Sensor

Technology : Fiber Optic Gyroscope

Grade : Industrial

Applications : Aerospace, Defense, Navigation, Robotics

Warranty : 1 year

Customized Support : OEM, ODM

Contact Now

JT98D Fiber Optic Gyroscope

JT98D fiber optic gyroscope is an angular velocity sensor with wide range, fast response, high sensitivity, small size, high precision, ruggedness and reliability, small size, light weight, and immunity to electromagnetic influence.

Gyro Level

parameter

Range ( °/s)

± 40

Bias stability ( °/h) , 10 0 s

＜ 0.003​

Zero bias repeatability ( °/h)

＜ 0.003​

Random walk coefficient ( °/√h)

＜ 0.0003

Scale factor non-linearity ( ppm )

＜10

Scale factor asymmetry ( ppm )

＜10

Scale factor repeatability ( ppm )

＜10

Frequency bandwidth ( Hz )

≥100

Startup time ( s )

≤5

Magnetic shielding

The optical fiber ring of key sensitive devices has magnetic shielding

Power supply ( V )

± 7.4 V power supply (6 ~ 16 V available)

Power consumption ( W )

≤5

Dimensions ( mm )

98*98* 35

Weight ( g )

450±10

Output method

RS- 232

Operating temperature (°C)

-30 ℃ ~ + 60 ℃​

Storage temperature (℃)

-55 ℃ ~+8 5 ℃

Communication interface

RS232

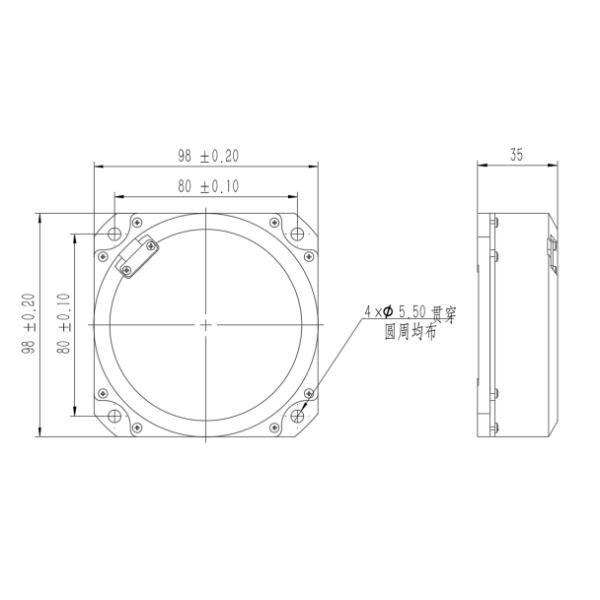

JT98D installation dimension drawing
